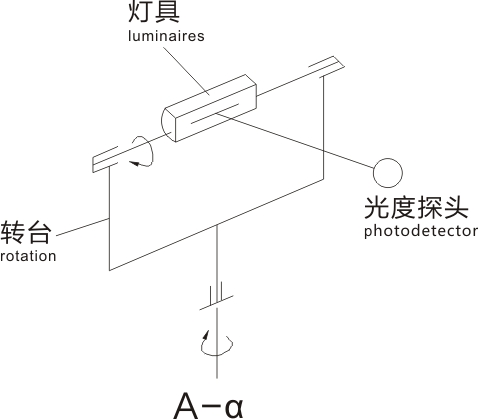

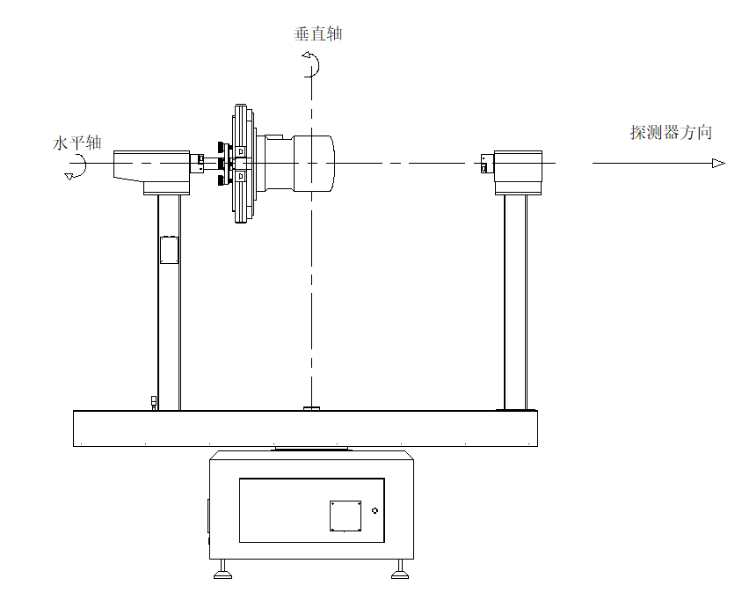

系統測量數據符合國際、國內標準要求,RS-485標準接口,通過USB轉RS-485方便與各種微機連接,單立柱驅動或雙立柱驅動A-α坐標系測量方式,特殊的激光十字線瞄準裝置,方便、準確安裝測試燈具的位置。 GPM-1800C分布光度計(航空障礙燈專用)測試系統主要由分布光度計轉臺、恒溫光度探頭、標準燈、航空障礙燈專用夾具、電源及電量測量儀器等組成。
> 光度測量范圍:照度0.01lx - 99999lx
> 光度測量精度:1%(不包括標準光源本身不確定度)
> 光度線性:0.2%
> 恒溫光度探頭選用標準級,內部恒溫控制精度:±0.1度
> 雜散光:小于0.1%(理論暗室)
> 角度精度:0.1度
> 傳動角度分辨率:A角為0.01度 α角為0.01度
> 被測對象(含燈具和夾具)的最大允許尺寸: A-α方案:1600mm(高)×800mm(深)
> 被測對象(含燈具和夾具)的最大質量:30kg
> 被測燈具最大電流<10A

MH/T 6012-2015 《航空障礙燈》
